Features
- 16 gauge mild steel capacity.
- 37 ¾” throat depth can handle almost any project.

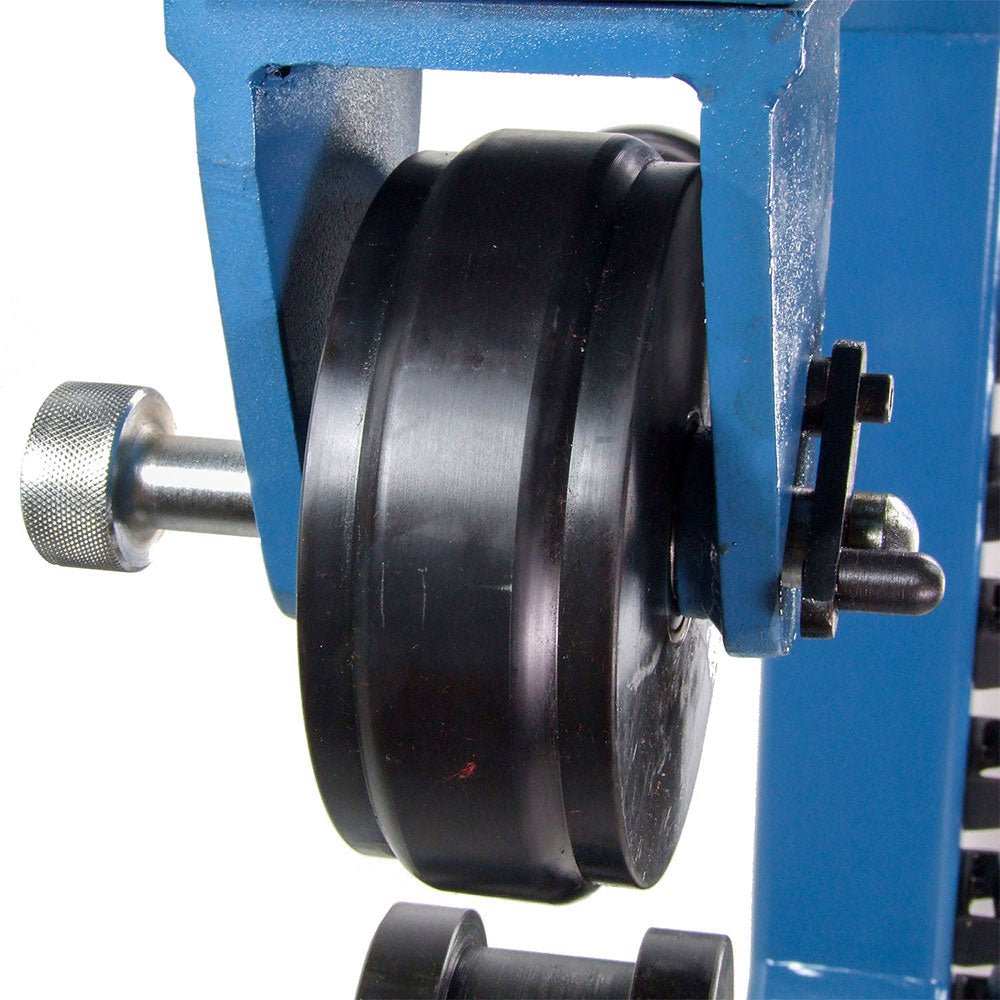

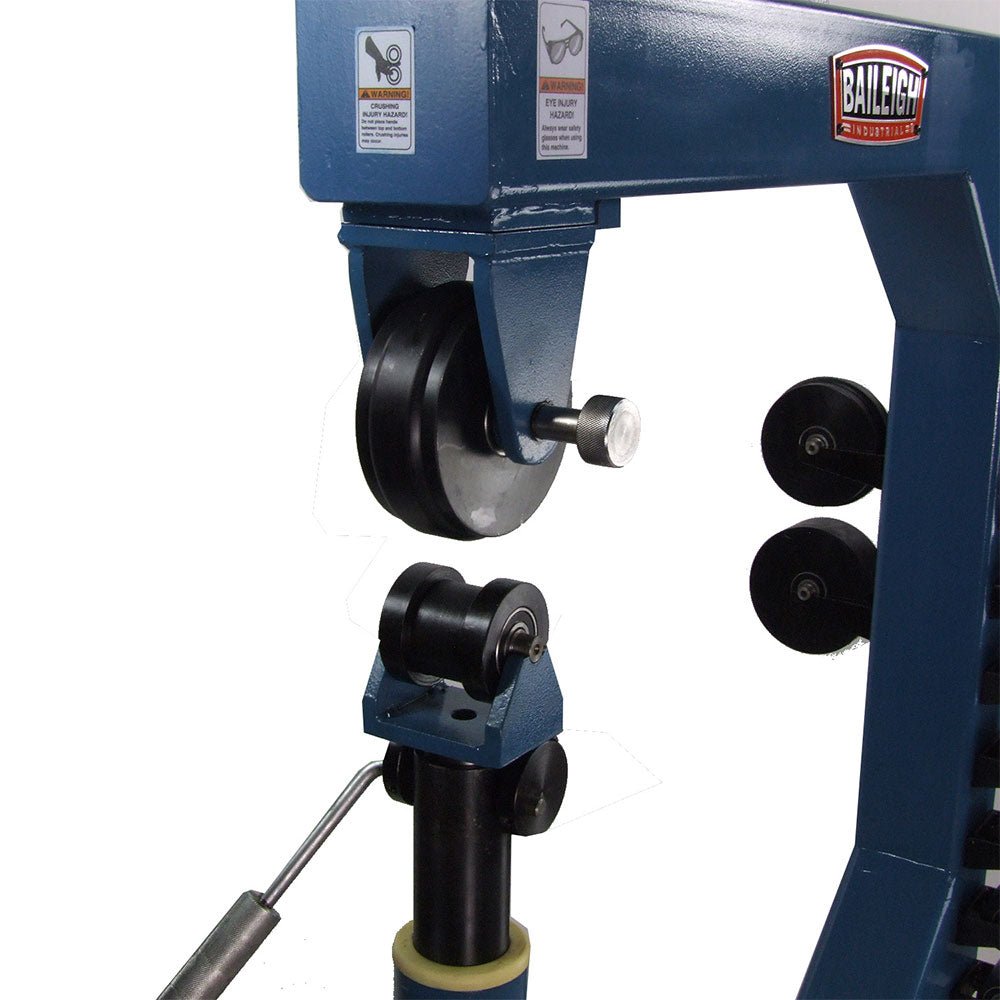

- Comes with 3 upper wheels (6” x 2.75”).
- 9 hardened bottom anvils:
- ?”, ½”, and ¾” edge radii.
- 6” crown radius.
- 2 flat rolls.
- 5/16” x ¼” step roll.
- 1½ ” and ?” round bead rolls.
- You can roll beads as well as form metal on this English wheel.
- All upper wheels and lower anvils use sealed bearings.

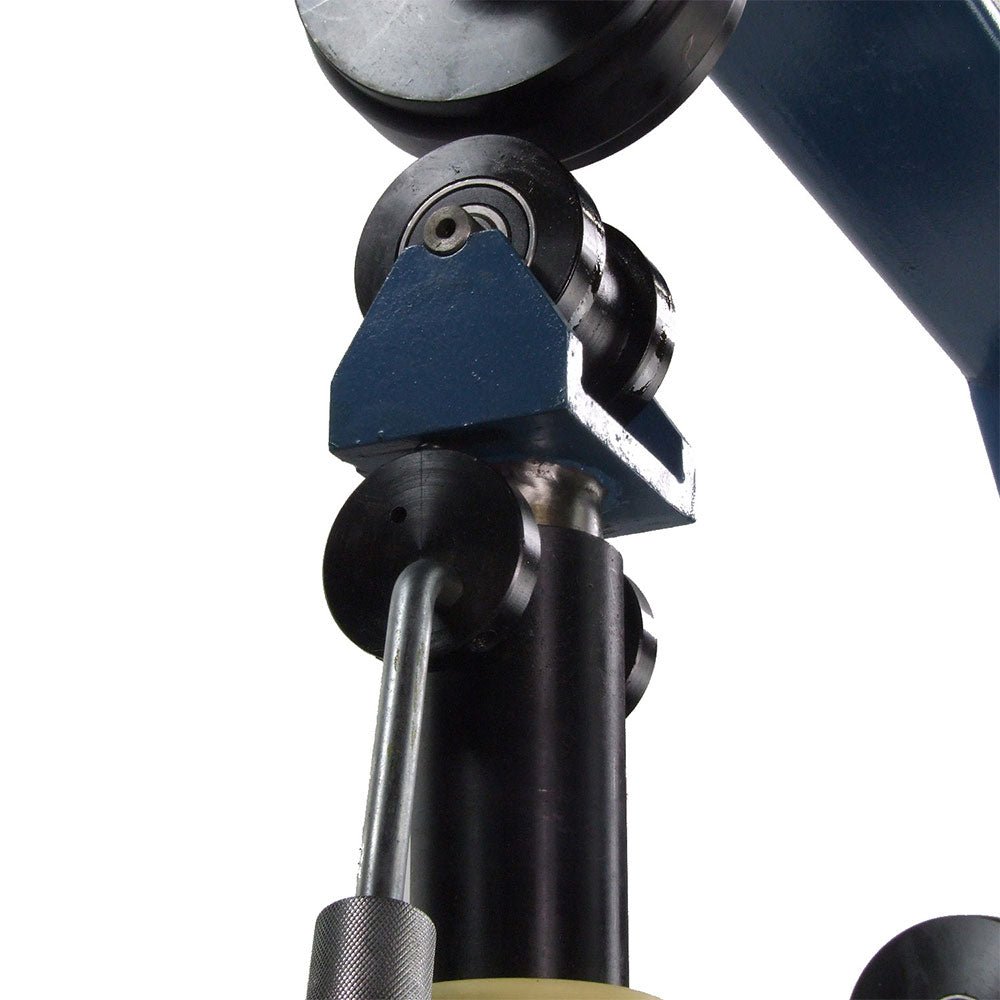

- Swivel head lets you either push material directly into the throat or at a 90° to it.

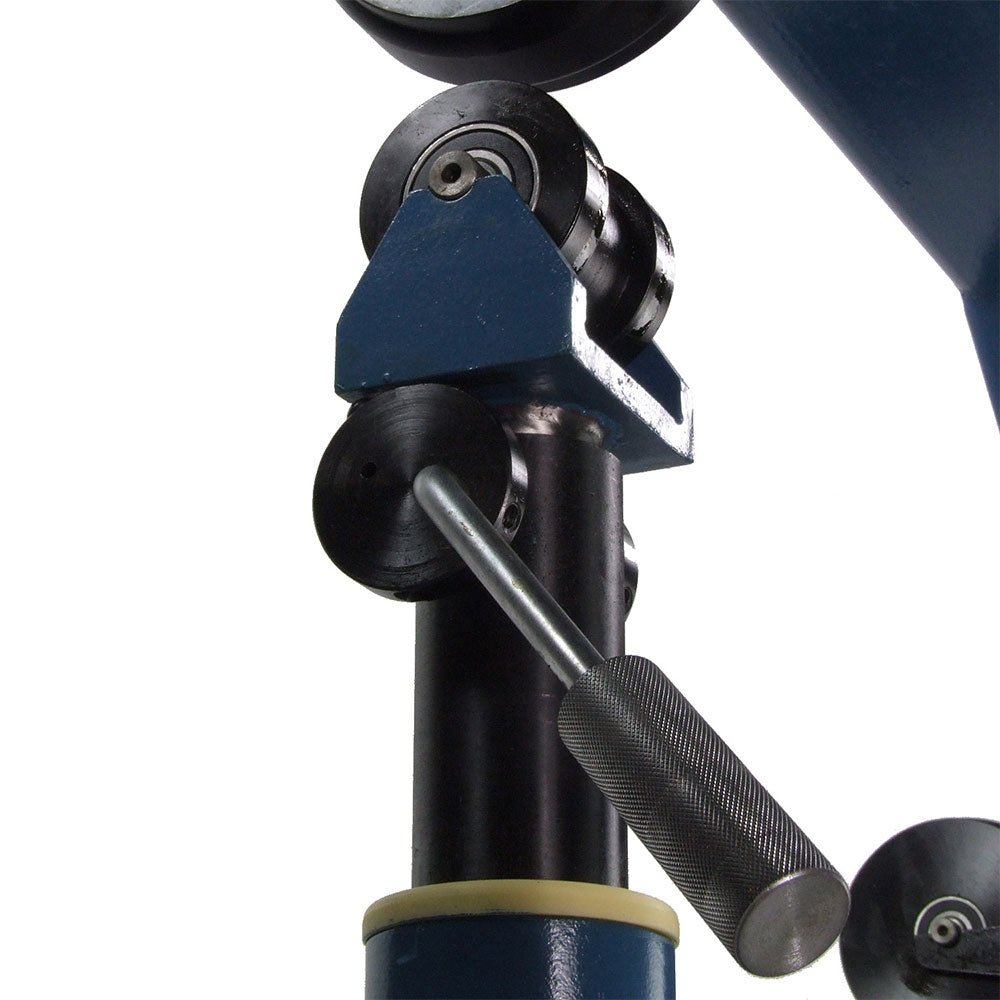

- Quick-release cam allows you to release the panel without changing tension.

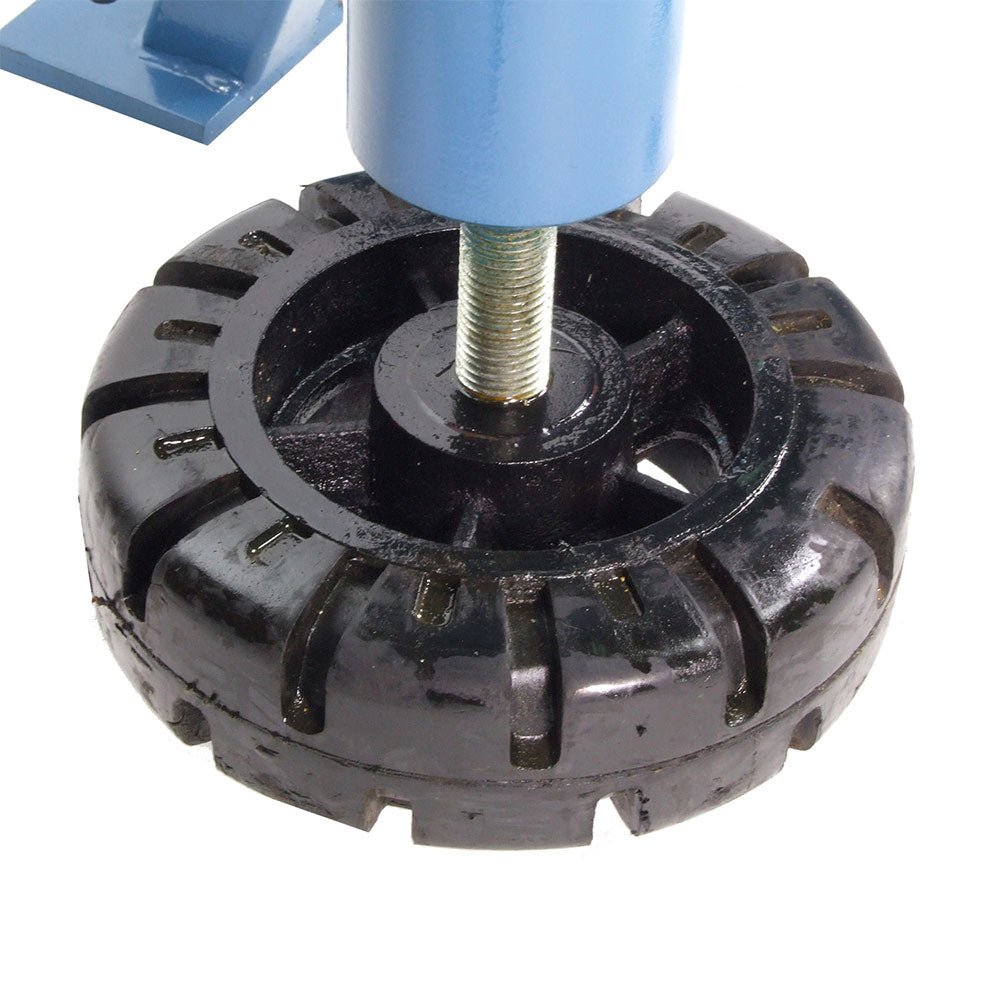

- Adjust the tension via the kick tensioner, made of real rubber.
- Fully welded 5” x 5” x .250” box tubing framework prevents flex when rolling at full capacity.

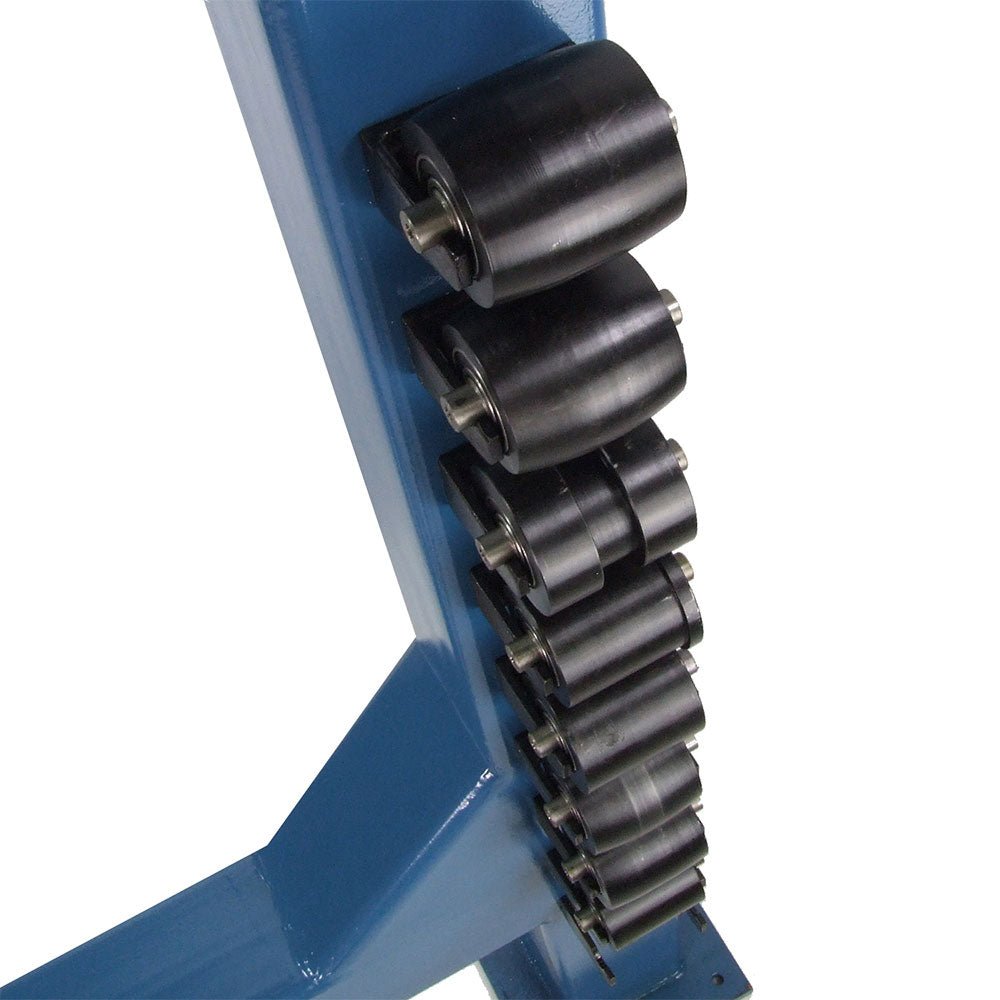

- Tooling holder on the side of the machine gives you a convenient place to put your rolls.
- Covered by a 1-year parts warranty.
What’s in The Box

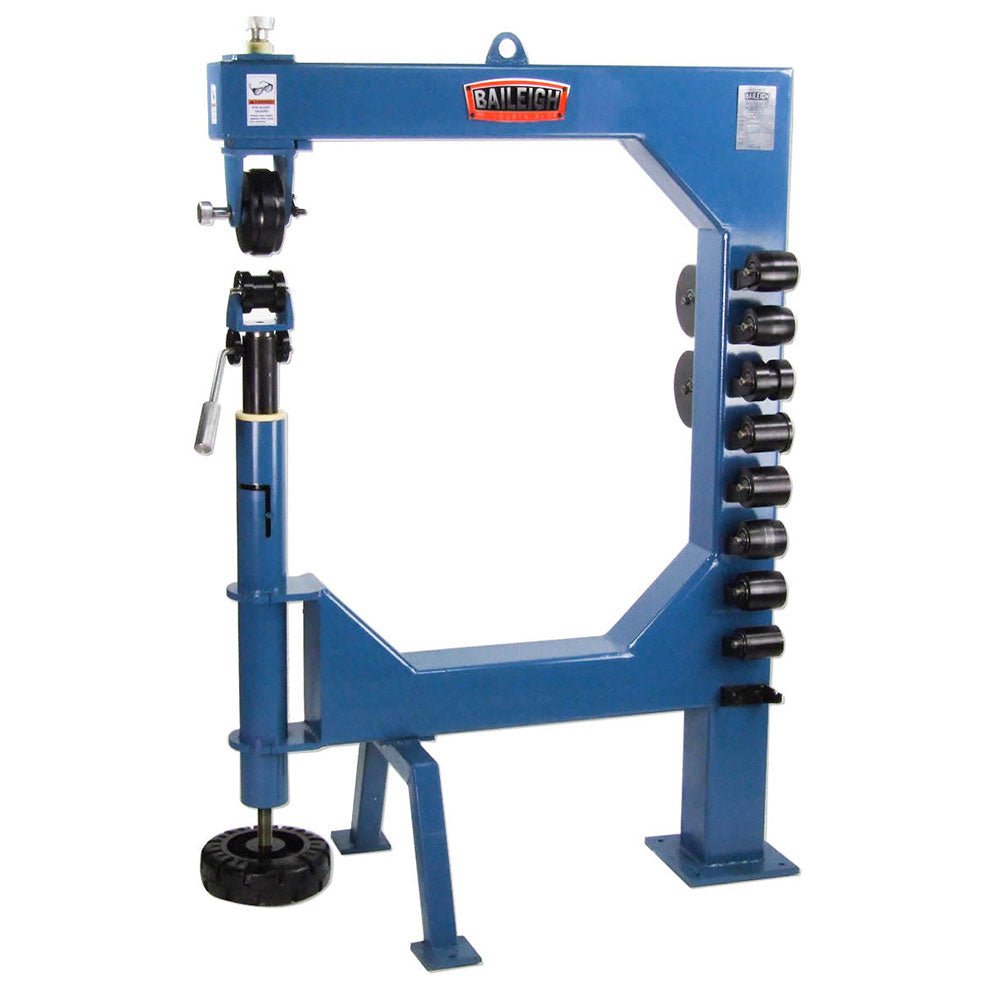

- EW-40 – English Wheel
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | EW-40 |
| Power | Manual |
| Mild Steel Capacity | 16 ga. |
| Throat Depth | 37-3/4″ |
| Aluminum Capacity | 14 ga. |
| Lower Die Radius | 1.85″, 2.165″, 4.85,40″ |
| Shipping Dimensions (Inches) | 67x48x14 |
| Top Wheel Dimensions | 6” x 2 ¼” |
| Shipping Weight | 510 lbs |
