Features
- Oil bathed 2-speed gearbox
- Four heavy-duty support columns
- Fixed table height design

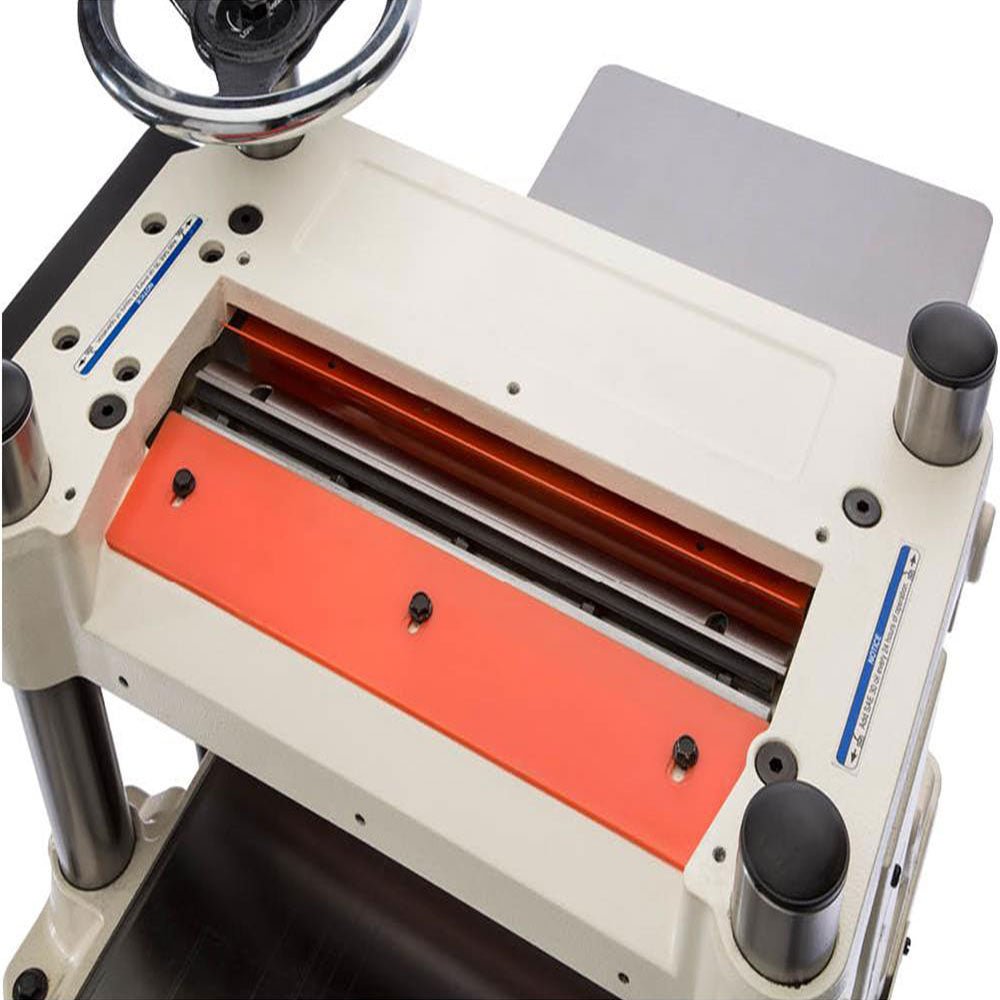

- Includes 5 spare carbide inserts
- Anti-kickback fingers
- Cast-iron extension wings
- Elevation scale with both inch and metric
- Magnetic switch

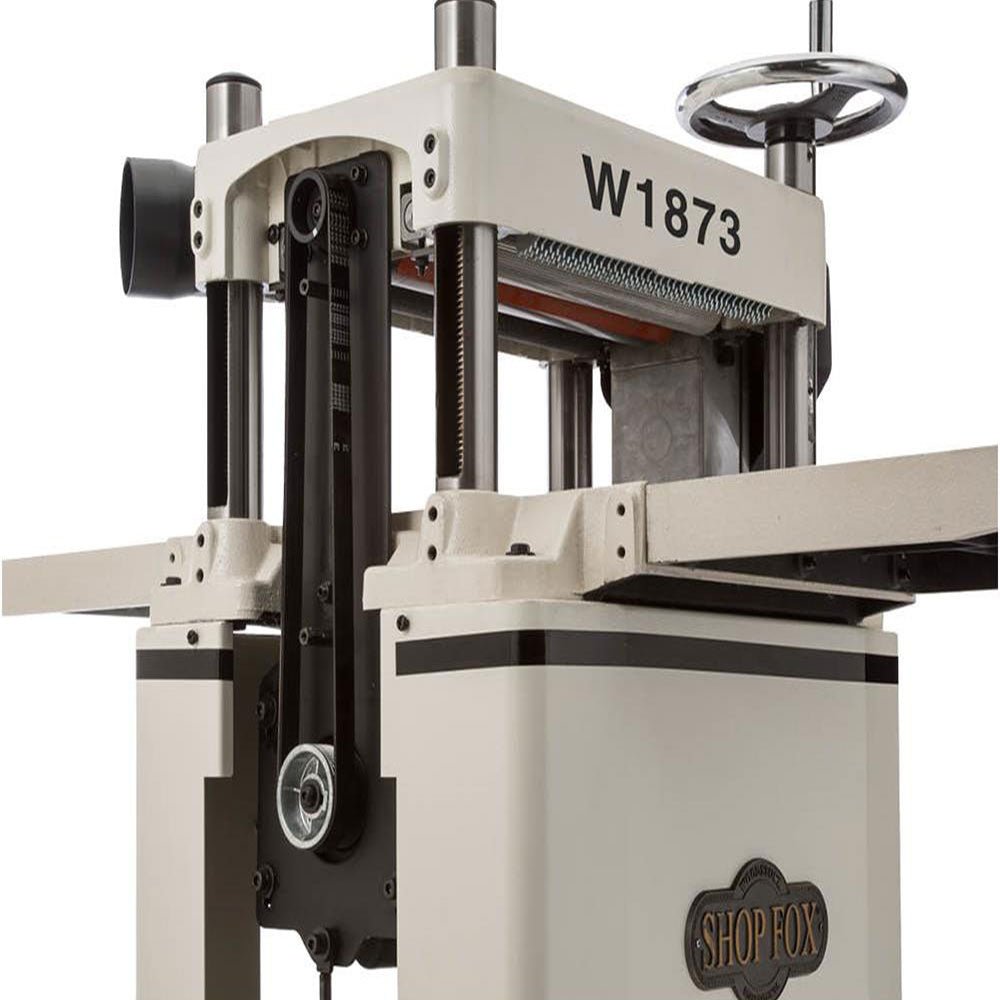

- Poly-V belt drive
- Cabinet-style stand

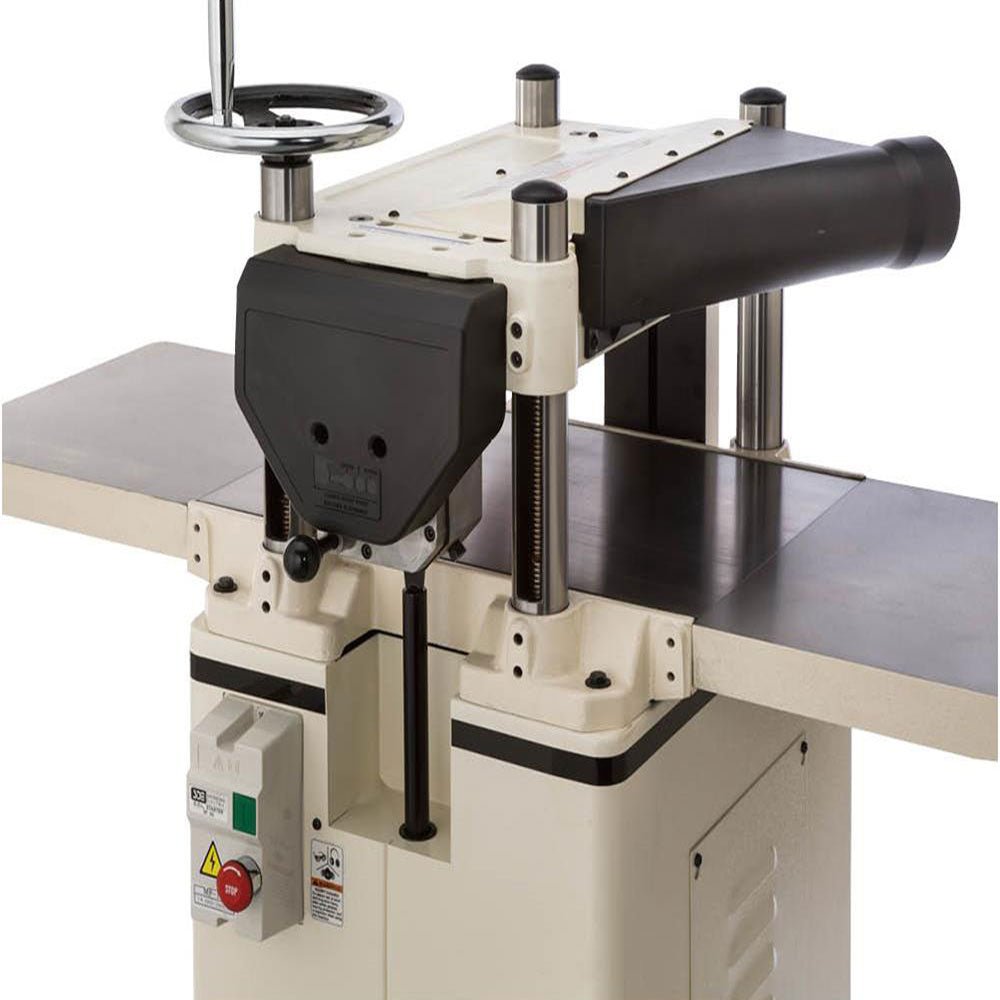

- Large top-mounted handwheel
What’s in The Box

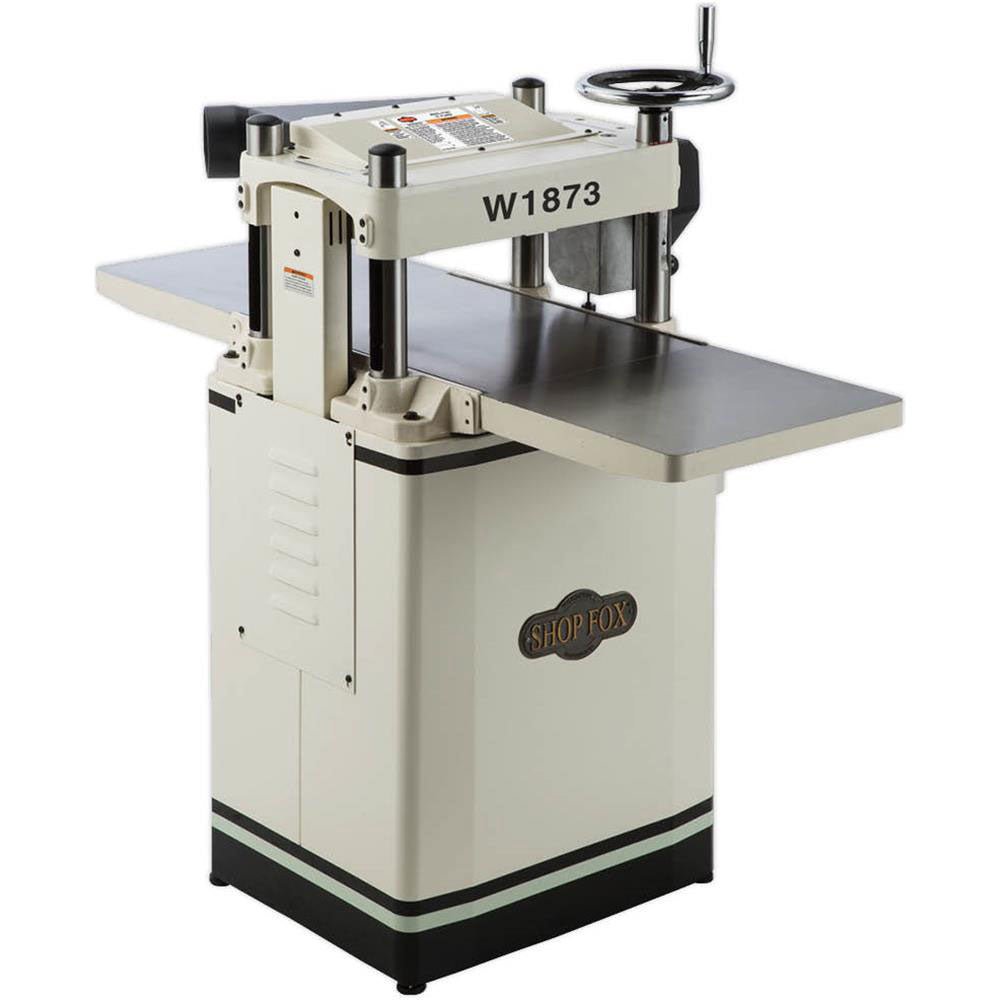

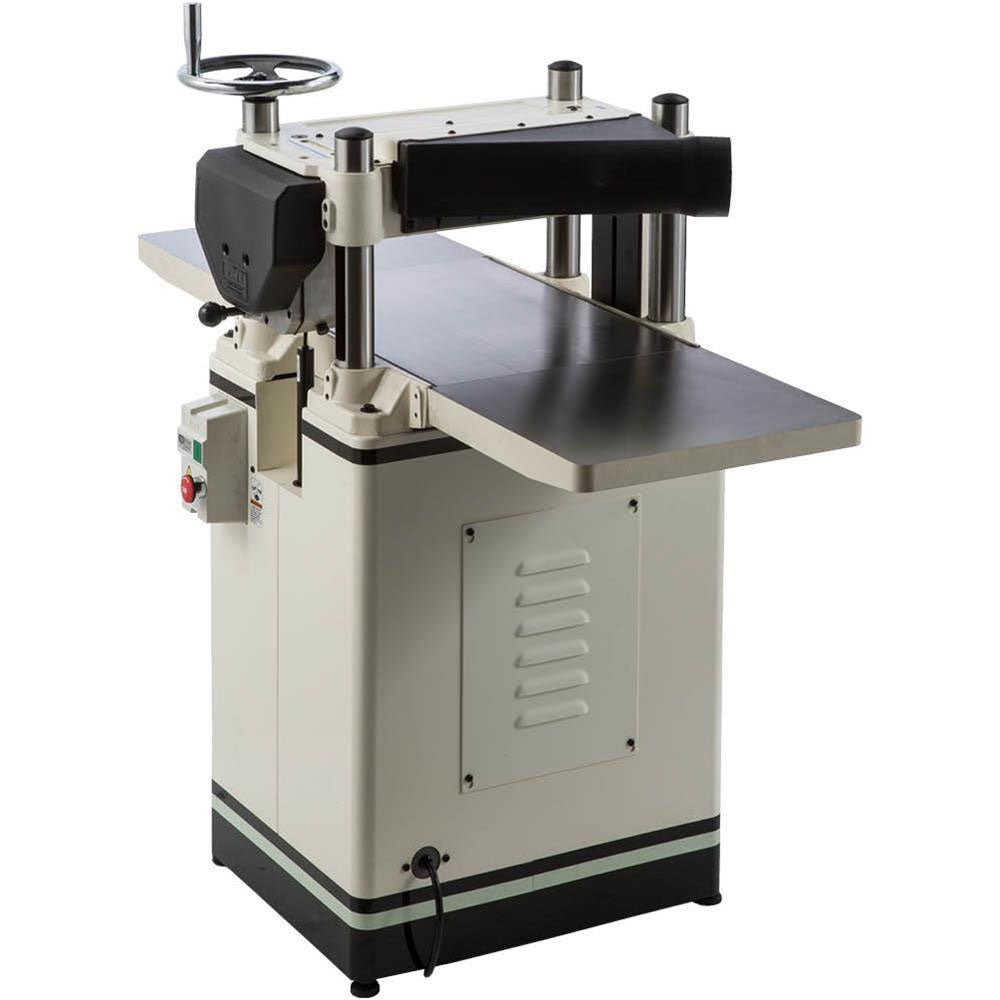

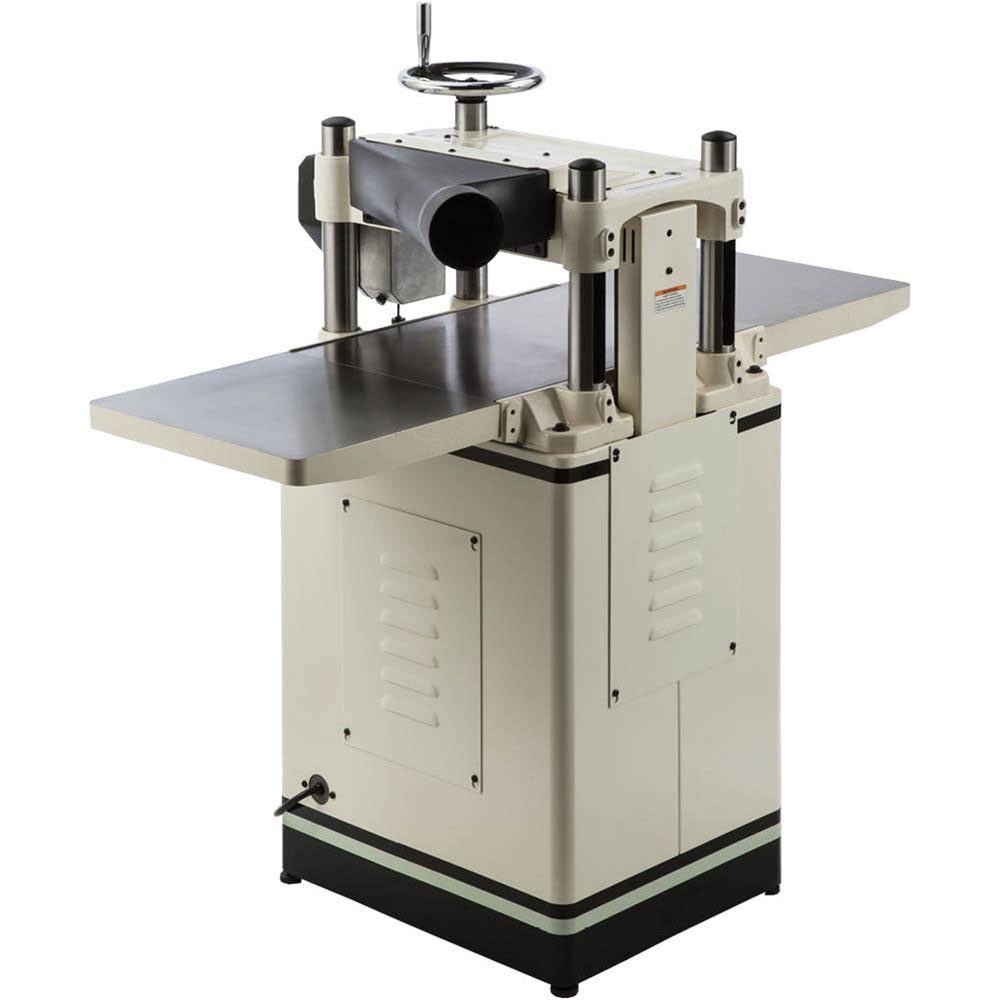

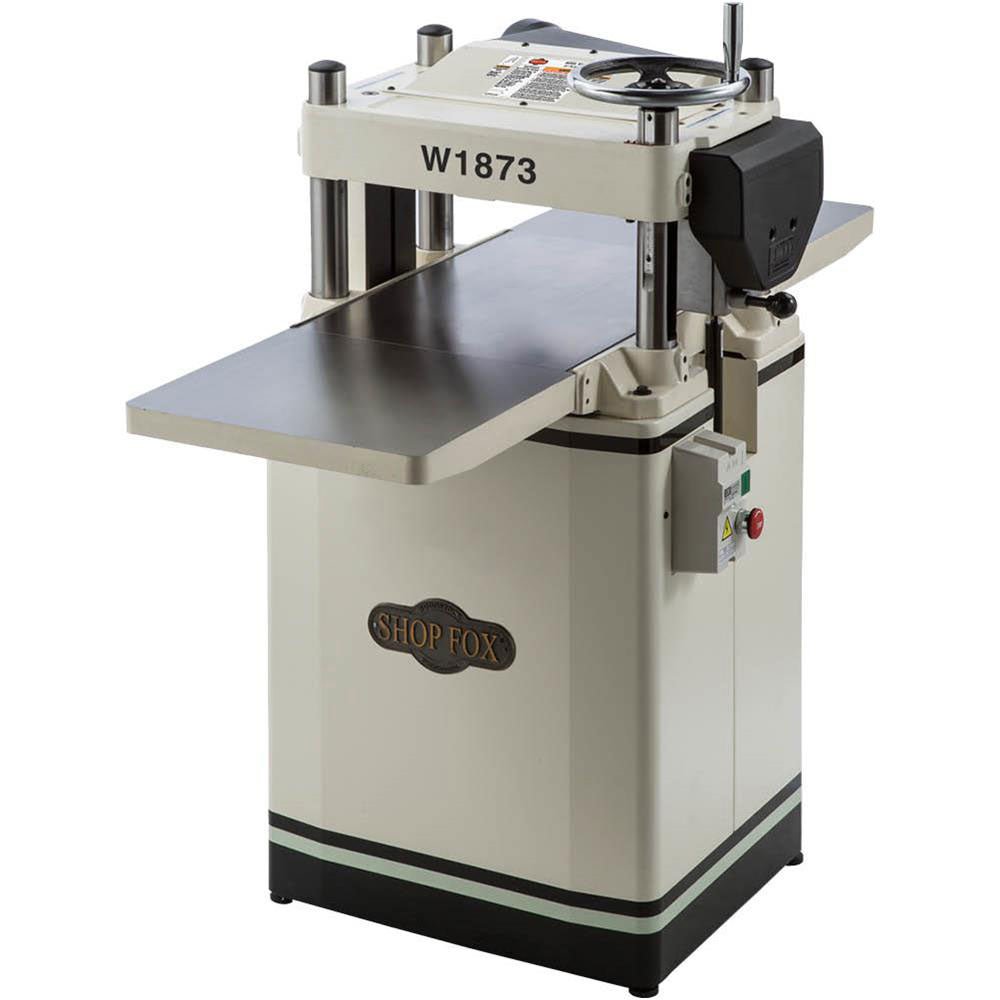

- Shop Fox 15 in 2-Speed Fixed-Table Planer – W1873
- Owner’s Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | W1873 |
| Brand | Shop Fox |
| Volts | 230V |
| Motor HP | 3 |
| Motor Phase | Single Phase |
| Table Size w/cast iron wings(in) | 15-1/2 W x 49 L |
| Max Cutting Height | 6 in |
| Max Cutting width | 15 in |
| Min Cutting Height | 3/16 in |
| Max Cutting Depth | 1/8 in |
| Min Length os Stock | 6 in |
| Feed Rates | 16, 28 FPM |
| Cutterhead Diameter | 2-5/8 in |
| Cutterhead Speed | 5200 RPM |
| Width | 25 in |
| Depth | 49 in |
| Height | 47-1/2 in |
| Weight | 300 lbs |
